Surface to In-Seam [SIS] Mining & Drill Techniques

CADSOLID -

ENGINEERING®

CadSolid-Engineering

Continuous "Under Construction" engineering for a sustainable better world

Entrepreneurship in  problem solving to fit-for-purpose solid solutions


" Everything should be made as simple as possible, but not simplier." - Albert Einstein

Plug-In Hybrid Step-Up Energy Savings by >50%

&

Undercutting Tensile Strength Mining Power System

Type "HW500" meter depth's

Not Limited by Prior-Art Hose-Chain Reel Length and Drum-UCS-Cutting at Continuous Losses

Patent Pending

OEM&AM - NPI - CPI ARE THE METHODS WE USE TO DESIGN AND DO BETTER

[Click to Enlarge Images]


Copyright (c) 2022, Author and Intellectual Properties: Cornelis W. in 't Hout

CSE DUTCH OEM DESIGNS

CSE CUTTING TECHNOLOGY

PARTNUMBER: 220-5005_2

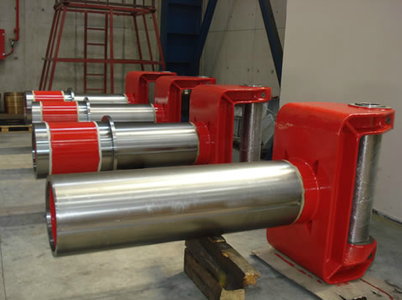

TDS - HEAVY-DUTY CASTING COLUMN ASSEMBLY FOR SIS-M300 (RETROFIT HW300) MACHINES, DIRECT COLLAR KEY-BEARING BUSHING MOUNTED CAST STEER COLLAR FLANGE WITH IMPROVED PRE-TENSION BOLTS [SHOWING THE FRONT RH OR LH REAR CONFIGURATION]
HYDRAULIC ACTUATOR 2 POSITION COLLAR FLANGE, FOR "MINING-MODE" AND FOR "TRAM-MODE" PRESETS

TDS (Track-Drive-System) CAST COLUMNS T2
PREFAB ASSEMBLY EACH PART INSPECTED ON FIT FOR PURPOSE CONFIGURATIONS AND NUMBERED FOR SIS-M300 (RETROFIT HW300) MINING MACHINES

UNDER CONSTRUCTIONS UNDER CONSTRUCTION UNDER CONSTRUCTION UNDER CONSTRUCTIONS
