Plug-In Hybrid Step-Up Energy Savings by >50%

&

Undercutting Tensile Strength Mining Power System

Type "HW500" meter depth's

Not Limited by Prior-Art Hose-Chain Reel Length and Drum-UCS-Cutting at Continuous Losses

Patent Pending

OEM&AM - NPI - CPI ARE THE METHODS WE USE TO DESIGN AND DO BETTER

[Click to Enlarge Images]

CSE DUTCH OEM DESIGNS

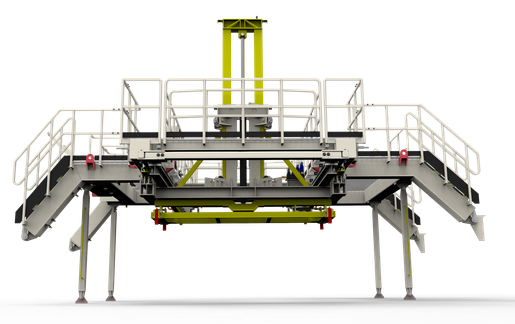

PARTNUMBER: 252-5001
PTM [Pushbeam Transfer Mechanism] TYPE 2, Patent Granted

THIS TYPE RETROFIT ON ALL HW300 MINER MODELS AND ADD SIGNIFICANT PRODUCTION PERFORMANCE WHILE MINING, COMPRISING F.O.P. SAFE STRUCTURE, SAFETY-GRIP ACCESS STAIRS, WALKWAYS ON PLATFORM LEVELS AND BOOM STABILIZERS TO HOSE-CHAIN REEL MODULE. STRUCTURE AS A WHOLE FOLLOWS THE HIGH DYNAMICAL FORCE AND DISPLACEMENT MOVEMENTS ON ALL AXIS DIRECTIONS OF THE BASE-FRAME SUPPORT-BEAMS, DUE TO PIVOT HOLE-PIN CONECTIONS AND FOUR MIN...

PARTNUMBER: 252-5001

THE TRAVERSE SYSTEM COMPRISING AN OVERHEAD PICK-N-PLACE CRANE SYNCHROON FRAME WITH LIFT AND GRIPPER-FRAME TO QUICK PICK-UP / LAY-DOWN CONVEYOR BEAMS (PUSHBEAMS) FROM AND TO MACHINE CENTER VS SIDE-STACK MAGAZINE. SAFE WORKING LOAD (SWL) 6 mTON
